Let Agents Review Your Visual Test Failures in GitHub Actions

A practical guide to adding automatic review of Applitools Eyes results to a CI/CD pipeline you already have.

Most visual testing stops at taking the picture. Applitools Eyes captures screenshots, and if something looks different, the build turns red. While automated baseline management handles routine updates, engineers still need to review remaining visual differences in the dashboard.

Capture Is Not the Same as Review

If Eyes already runs in your CI pipeline, you already have:

1. A test that opens Eyes and takes screenshots
2. An API key stored as a CI secret
3. A batch of screenshots waiting on the Eyes server after each pull request

Three Kinds of Access, Three Separate Keys

Applitools API keys aren’t all the same. That distinction is what makes it safe to add review to CI.

• Saving baseline is a separate action on top of write access. It’s covered further down.
• Use three separate keys: one execute-only for capture, one read-only for inspecting, one write-access for resolving.
• The tool that connects to Eyes looks for a single key name, so map the right key onto it at each step. Capture never sees the write key.

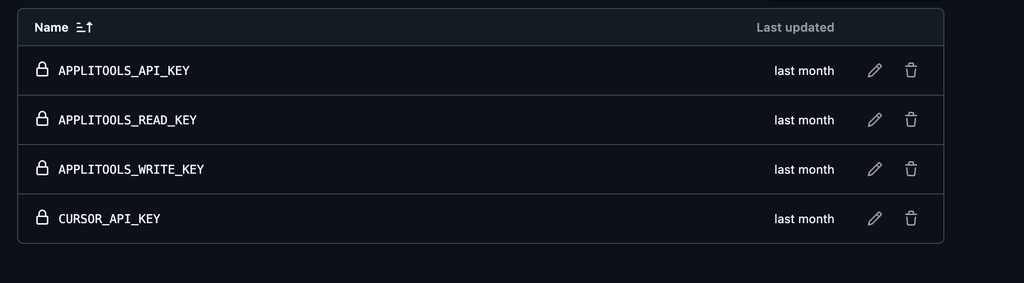

Configured Applitools API Keys in CI Secrets

Where This Fits Into a Pipeline You Already Have

We didn’t build a second workflow. GitHub Actions is the example here, but the same steps drop into any CI/CD platform Applitools supports. The extra work is done by an AI agent; any agent that can call MCP tools works, including Claude Code, Cursor, Copilot, and Codex. It could be one you’re already running in the pipeline for other tasks, or one added just for this.

1. Checks out the code and installs whatever the tests need
2. Runs the visual tests while allowing the job to continue if differences are detected. If no differences are found, the build completes successfully as green
3. Tries to notify GitHub the batch is complete, and ignores it if that fails
4. If the visual tests failed and the right key is available, runs an AI agent that calls the review tools
5. Posts a summary as a comment on the pull request
6. Still fails the job, so the check stays red until someone is satisfied, or until someone saves the changes

Pointing the Review at the Right Batch

CI usually labels a batch with the pull request’s commit hash, but that’s just a label, not the real ID used in Eyes dashboard links.

Look it up first: a quick call to the Eyes API using that commit hash returns the real link. That’s what gets handed to the agent.

Inspecting: The Pipeline Reads, It Doesn’t Touch Anything

eyes-inspect reads every difference without making any changes: never approve, reject, adjust, or save. It produces a concise textual summary of the findings. The differences themselves come from Applitools’ deterministic Visual AI, so the same screens produce the same findings on every run, providing accurate and consistent results without consuming expensive AI tokens. The agent’s job is to explain them, not decide whether they exist.

Reviewing: The Agent Can’t Skip Anything

eyes-review turns inspection into a guided, deterministic investigation. It ensures the agent examines every changed area, calls the required eyes-inspect tools for each diff, and doesn’t skip findings, take shortcuts, or get confused by the workflow. For each change, it records a structured finding: what changed and whether it’s intentional, expected, or a real bug. It then produces a single consolidated summary for the entire build, with duplicate findings removed. Like inspecting, nothing in Eyes changes.

This is the step that produces the summary your pull request comment is built from.

Resolving: The Pipeline Acts, But Still Doesn’t Save Without Human Approval

eyes-resolve picks up where the review leaves off, but this time the agent can act. As it goes through each difference, it can:

• Dynamic data is masked during visual comparison, preventing content that is expected to change from continually producing diffs and allowing the review to focus on meaningful visual changes
• Approve a difference that matches what the pull request was meant to change
• Flag a difference as a genuine visual or functional bug

To do this well, the agent needs two kinds of context, or it will guess wrong:

1. What this pull request was intended to change, using the PR title, commit message, code changes, Jira tickets, requirements documents, and other available context
2. What is expected to change, such as clocks, tickers, or session IDs. In most cases, the agent can identify these changes on its own, but providing this context helps it make a more accurate determination

What Goes in the Pull Request Comment

The job can still fail, and that’s fine. A red check means Eyes found a difference, not that something broke.

• A working link to the batch
• Each difference, labeled as intentional, expected, or a real bug
• What was flagged or approved, and what was left alone
• A clear note that nothing has been saved yet

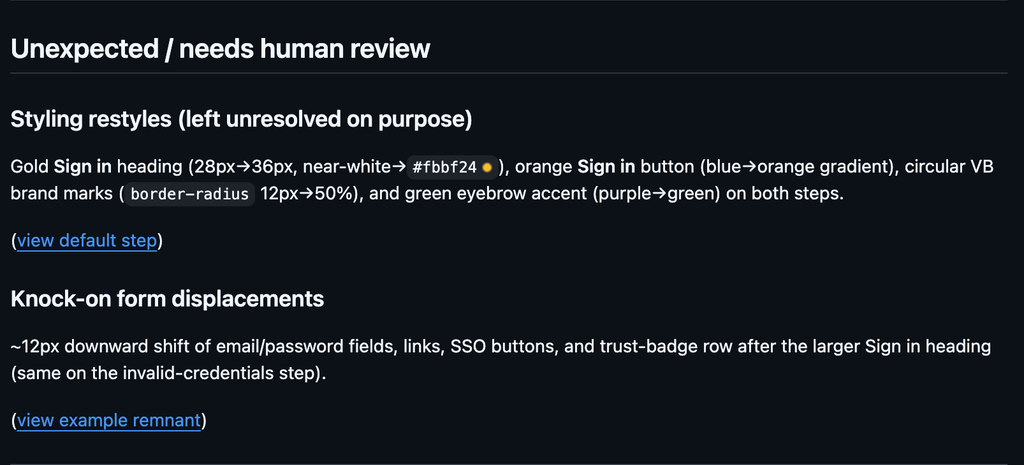

Example Pull Request Comment: Visual Differences Needing Human Review

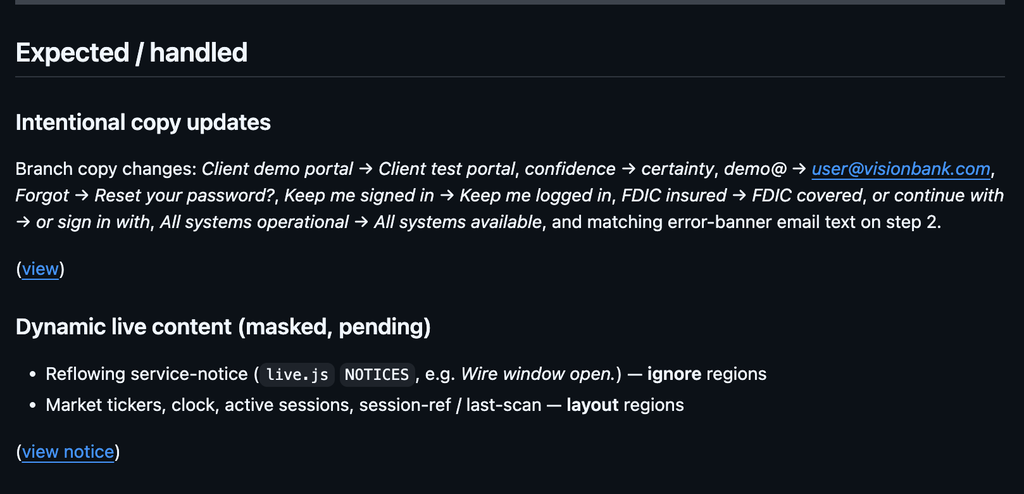

Example Pull Request Comment: Expected Changes and Masked Dynamic Content

Complete GitHub Actions Workflow Example

name: Applitools Visual Tests

on:
  pull_request:
    branches: [tests, main, master]

concurrency:
  group: applitools-${{ github.event.pull_request.number || github.ref }}
  cancel-in-progress: true

permissions:
  contents: read
  pull-requests: write

env:
  APPLITOOLS_BATCH_ID: ${{ github.event.pull_request.head.sha || github.sha }}
  CI: true
  HAS_APPLITOOLS_READ_KEY: ${{ secrets.APPLITOOLS_READ_KEY != '' }}
  HAS_APPLITOOLS_WRITE_KEY: ${{ secrets.APPLITOOLS_WRITE_KEY != '' }}
  HAS_CURSOR_KEY: ${{ secrets.CURSOR_API_KEY != '' }}

jobs:
  visual-tests:
    runs-on: ubuntu-latest
    timeout-minutes: 60

    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Setup Node.js
        uses: actions/setup-node@v4
        with:
          node-version: '20'
          cache: npm

      - name: Install dependencies
        run: npm ci

      - name: Install Playwright browsers
        run: npx playwright install --with-deps chromium

      - name: Run Applitools visual tests
        id: visual
        continue-on-error: true
        env:
          APPLITOOLS_API_KEY: ${{ secrets.APPLITOOLS_API_KEY }}
        run: npx playwright test tests/login.visual.spec.ts --project=chromium

      - name: Resolve Eyes batch URL
        if: always() && steps.visual.outcome == 'failure' && (env.HAS_APPLITOOLS_WRITE_KEY == 'true' || env.HAS_APPLITOOLS_READ_KEY == 'true')
        env:
          APPLITOOLS_LOOKUP_KEY: ${{ secrets.APPLITOOLS_WRITE_KEY || secrets.APPLITOOLS_READ_KEY }}
        run: |
          fallback="https://eyes.applitools.com/app/test-results/${APPLITOOLS_BATCH_ID}"
          url=$(curl -sS -H "X-Eyes-Api-Key: ${APPLITOOLS_LOOKUP_KEY}" \
            "https://eyesapi.applitools.com/api/v1/batches/${APPLITOOLS_BATCH_ID}?statsOnly=true" \
            | python3 -c "import json,sys; print((json.load(sys.stdin).get('batchUrl') or '').strip())" \
            || true)
          if [ -z "$url" ]; then
            url="$fallback"
          fi
          echo "EYES_BATCH_URL=${url}" >> "$GITHUB_ENV"
          echo "Using Eyes batch URL ${url}"

      - name: Install Cursor CLI
        if: always() && steps.visual.outcome == 'failure' && env.HAS_CURSOR_KEY == 'true' && (env.HAS_APPLITOOLS_WRITE_KEY == 'true' || env.HAS_APPLITOOLS_READ_KEY == 'true')
        run: |
          curl https://cursor.com/install -fsS | bash
          echo "$HOME/.local/bin" >> "$GITHUB_PATH"

      # Write key: add regions, accept expected diffs, reject bugs.
      # Do not save — pending decisions stay undoable until someone saves
      # in Eyes or a gated workflow calls eyes_resolve_save.
      - name: Resolve visual differences
        if: always() && steps.visual.outcome == 'failure' && env.HAS_CURSOR_KEY == 'true' && env.HAS_APPLITOOLS_WRITE_KEY == 'true'
        env:
          CURSOR_API_KEY: ${{ secrets.CURSOR_API_KEY }}
          APPLITOOLS_READ_KEY: ${{ secrets.APPLITOOLS_READ_KEY || secrets.APPLITOOLS_WRITE_KEY }}
          APPLITOOLS_WRITE_KEY: ${{ secrets.APPLITOOLS_WRITE_KEY }}
          APPLITOOLS_API_KEY: ${{ secrets.APPLITOOLS_WRITE_KEY }}
        run: |
          cursor-agent --print --force --trust --sandbox disabled --approve-mcps \
            --output-format text \
            "Resolve the Applitools Eyes batch at ${EYES_BATCH_URL} Never call eyes_resolve_save. Leave decisions pending. Write a markdown report to triage.md. Do not modify any other file." \
            2>&1 | tee triage.log

      # Read-only fallback when write key is missing.
      - name: Inspect visual differences (read-only)
        if: always() && steps.visual.outcome == 'failure' && env.HAS_CURSOR_KEY == 'true' && env.HAS_APPLITOOLS_WRITE_KEY != 'true' && env.HAS_APPLITOOLS_READ_KEY == 'true'
        env:
          CURSOR_API_KEY: ${{ secrets.CURSOR_API_KEY }}
          APPLITOOLS_READ_KEY: ${{ secrets.APPLITOOLS_READ_KEY }}
          APPLITOOLS_API_KEY: ${{ secrets.APPLITOOLS_READ_KEY }}
        run: |
          cursor-agent --print --force --trust --sandbox disabled --approve-mcps \
            --output-format text \
            "Inspect the Applitools Eyes batch at ${EYES_BATCH_URL} Use the Applitools MCP tools with the read-scoped key already in APPLITOOLS_API_KEY / APPLITOOLS_READ_KEY. Call eyes_review_progress with mode inspect — never resolve, never accept, never reject, never add or change match regions, never save. Follow each response's next field until eyes_review_end reports the batch complete. Write a markdown report of the visual differences and their likely root cause to triage.md in the repository root. Do not modify any other file." \
            2>&1 | tee triage.log

      - name: Comment that Eyes review was skipped
        if: always() && github.event_name == 'pull_request' && steps.visual.outcome == 'failure' && (env.HAS_CURSOR_KEY != 'true' || (env.HAS_APPLITOOLS_WRITE_KEY != 'true' && env.HAS_APPLITOOLS_READ_KEY != 'true'))
        env:
          GH_TOKEN: ${{ github.token }}
        run: |
          gh pr comment "${{ github.event.pull_request.number }}" --body "$(cat <<'EOF'
          ## Eyes review skipped
          Visual tests failed, but MCP review did not run. Add these GitHub Actions secrets, then re-run:
          - `CURSOR_API_KEY` — Cursor API key for `cursor-agent`
          - `APPLITOOLS_WRITE_KEY` — Applitools key with **write** permission (regions, accept/reject). CI still does not save.
          - `APPLITOOLS_READ_KEY` — fallback for inspect-only if write is not set.
          The capture secret `APPLITOOLS_API_KEY` is execute-only and cannot review results.
          EOF
          )"

      - name: Upload Eyes review report
        if: always() && hashFiles('triage.md') != ''
        uses: actions/upload-artifact@v4
        with:
          name: eyes-review-report
          path: |
            triage.md
            triage.log

      - name: Comment Eyes review on the PR
        if: always() && github.event_name == 'pull_request' && hashFiles('triage.md') != ''
        env:
          GH_TOKEN: ${{ github.token }}
        run: |
          {
            echo "## Eyes review report"
            echo
            if [ "${HAS_APPLITOOLS_WRITE_KEY}" = "true" ]; then
              echo "Resolve mode on batch [${EYES_BATCH_URL}](${EYES_BATCH_URL}). Regions / accept / reject are **pending** and were **not** saved to the baseline."
            else
              echo "Read-only inspect of batch [${EYES_BATCH_URL}](${EYES_BATCH_URL}). Nothing was accepted, rejected, or saved."
            fi
            echo
            cat triage.md
          } > comment.md
          gh pr comment "${{ github.event.pull_request.number }}" --body-file comment.md

      - name: Fail the job if visual tests failed
        if: always() && steps.visual.outcome == 'failure'
        run: exit 1

Applitools GitHub Integration

For details on connecting Applitools Eyes directly to your repositories and CI workflows, see the official Applitools GitHub Integration documentation.

Below is an example of how GitHub Actions displays status checks when visual test differences are detected in a pull request:

Closing the Loop

Supercharge your pipeline by putting visual reviews on autopilot! Keep the test suite you already trust, but let AI agents instantly inspect, categorize, and resolve diffs the moment a build fails—keeping your engineering velocity at maximum speed while leaving full baseline approval firmly in human hands.

Stop letting visual review bottlenecks slow down your releases—close the loop today and empower your CI to review its own results with precision and speed.

Want to try it? Start with the Applitools MCP documentation, or watch Adam Carmi’s webinar replay to see an agent find, fix, and resolve a regression end to end.
